600W 12V Solar Panel Kit with DC-DC Assembly
● Solar Power Customized Kit
● Produces reliable energy even in partially shaded conditions
● Reliable and Environmentally Friendly Power Supply
● Multiple Options and Free Combination
● 25-year performance warranty
Our kits include a variety of options, including UV-resistant housing, ensuring durability and longevity even in challenging outdoor conditions. Additionally, our kits are equipped with DC-DC assembly, allowing the solar panels not only to charge your RV's battery but also to charge the vehicle's starter battery.
*Based on an average of 5-6 peak sun hours.
3*200W 12V Solar Panel
NOTE
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
RV
MARINE
CAMPING
OUTDOOR
CABIN
TRUCK

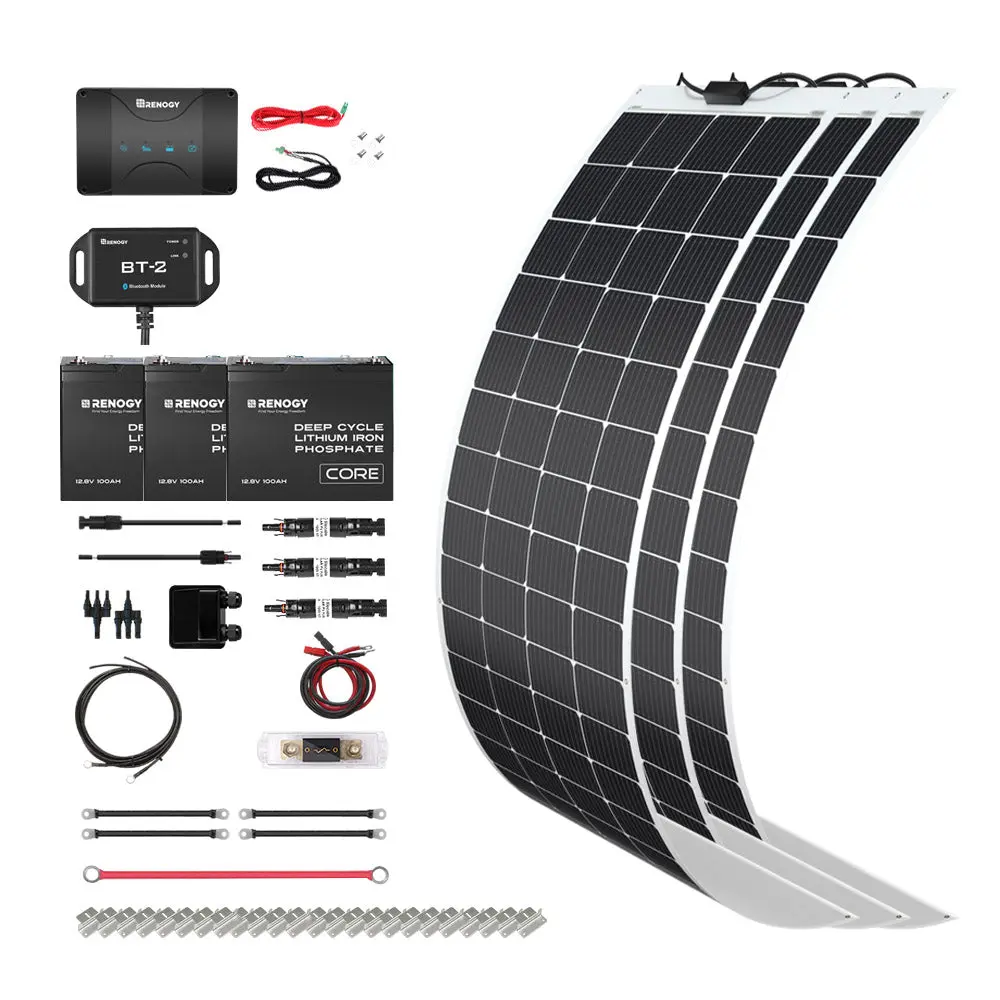

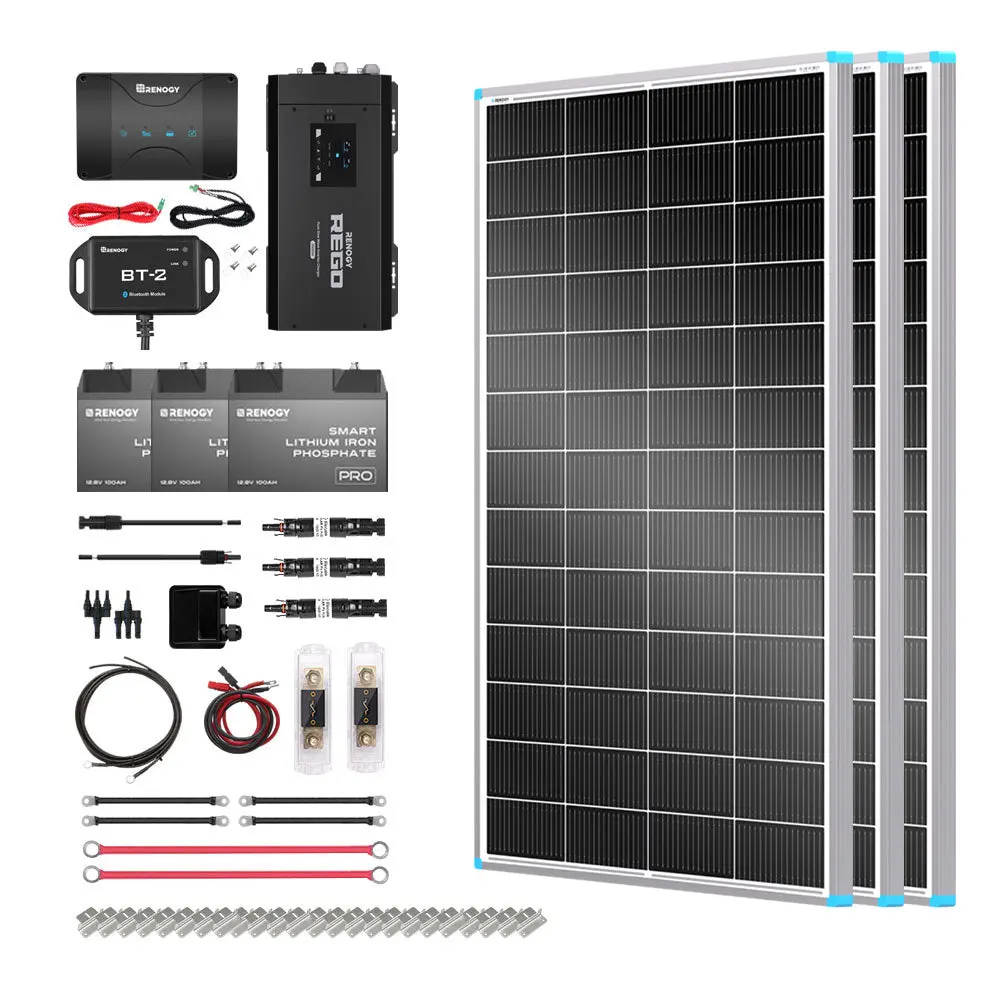

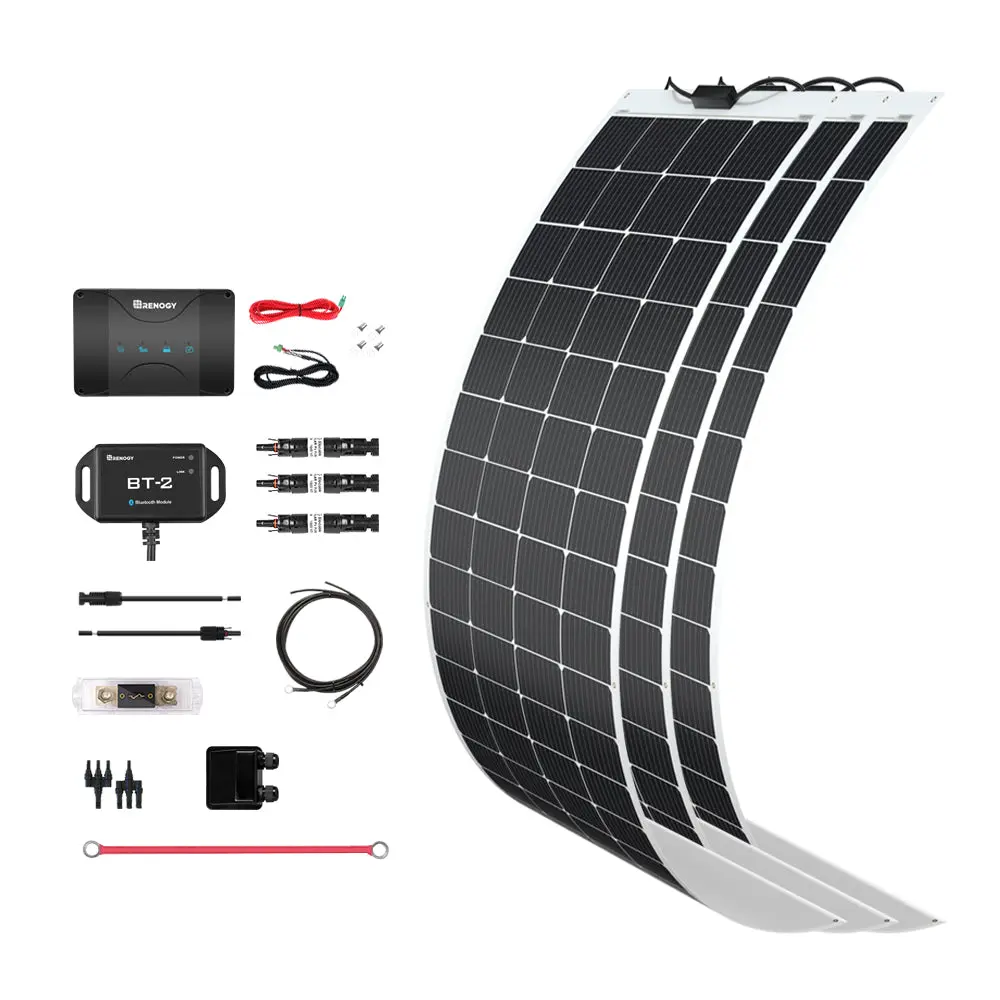

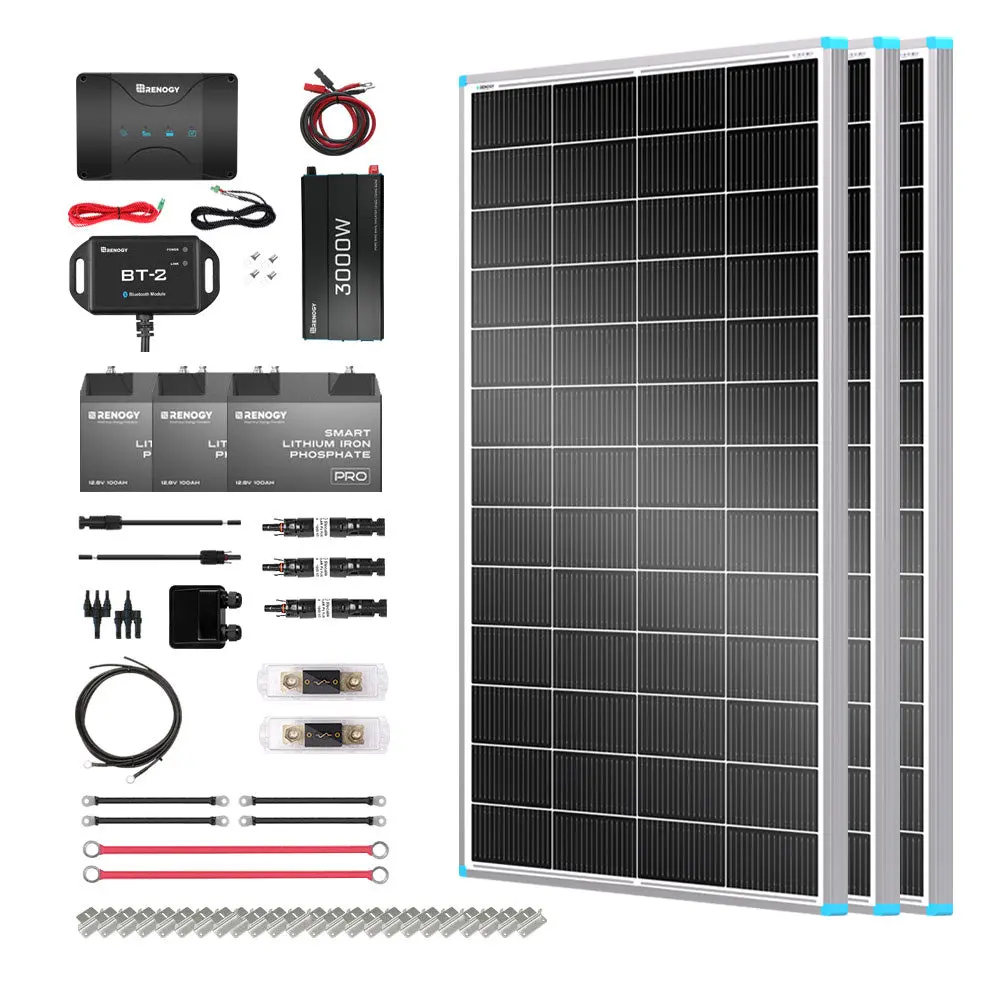

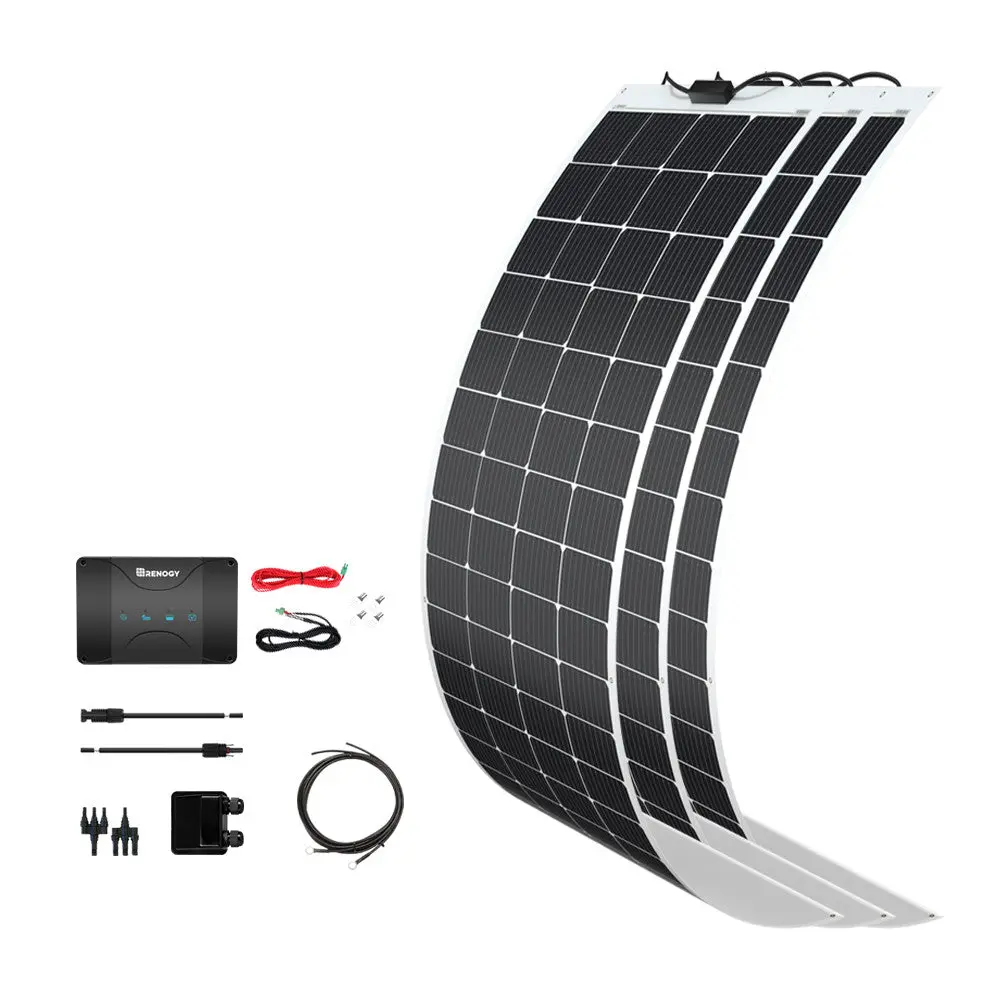

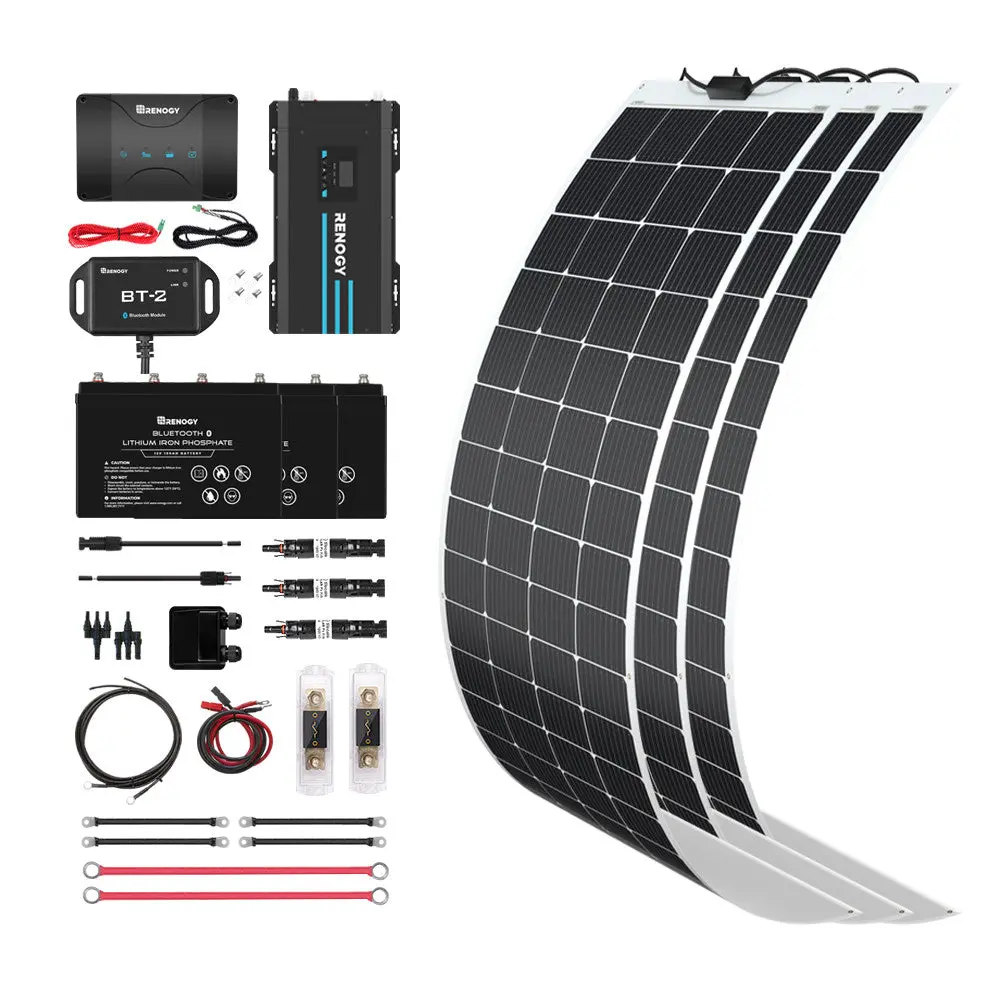

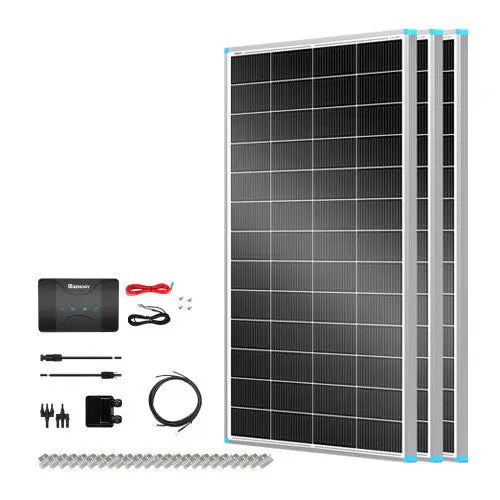

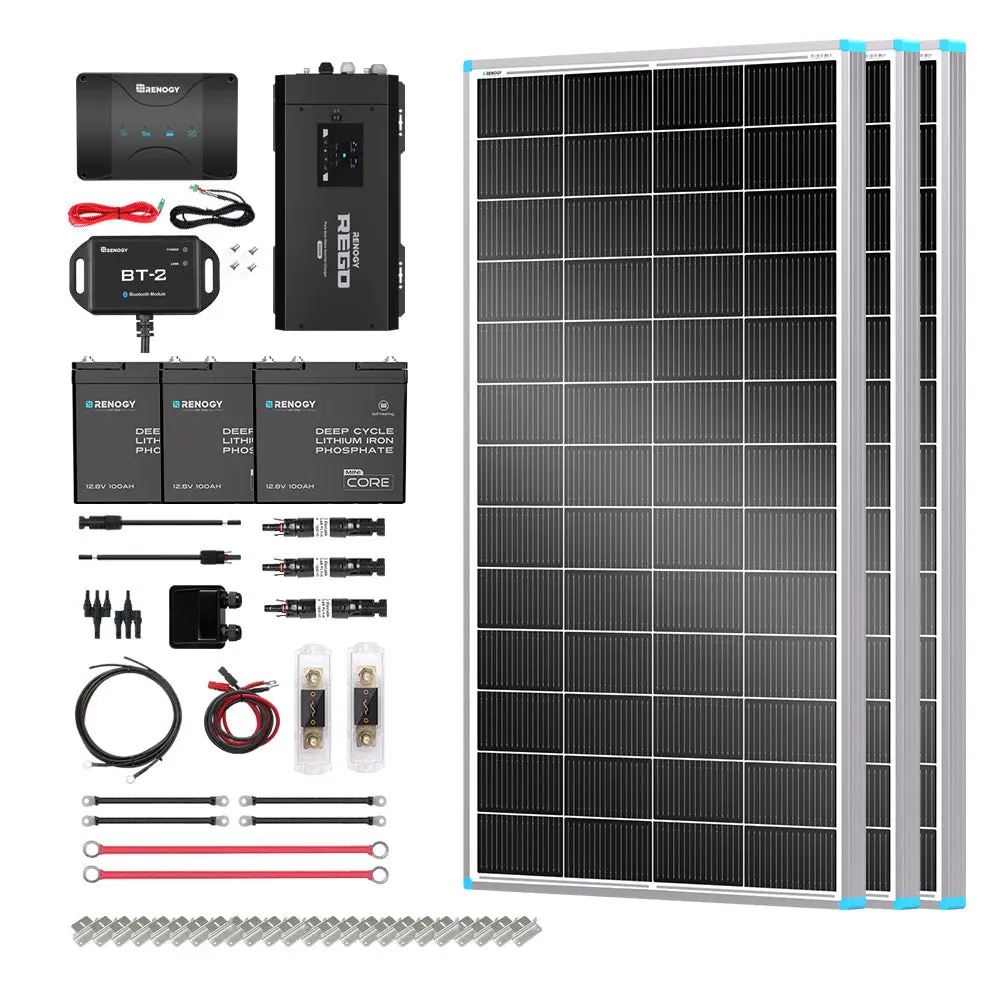

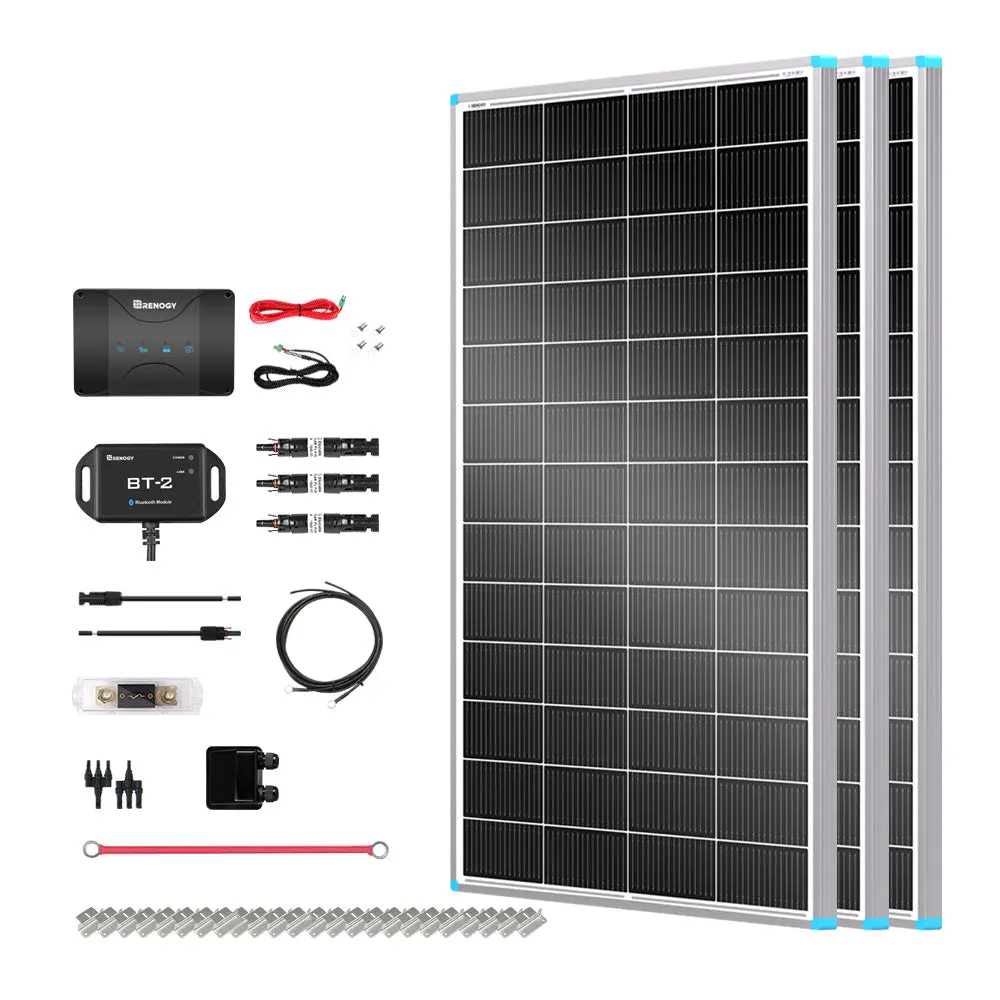

Package Includes
| Solar Panel | Quantity*Title |
|---|---|
| 3*200 Watt 16BB N-Type 24V Solar Panel | |
| 3*200W 12V Flexible Solar Panel | |
|
Battery Charger |
Quantity*Titl |
| 1* 12V 30A/50A DC-DC On-Board Battery Charger with MPPT | |
| Accessory Set for Rigid Panel Kit | Quantity*Title |
| 1*Solar Panel Mounting Z Bracket -- Set of 4(rigid solar panel) | |
| 1*Solar Y Branch Connectors MMF+FFM Pair | |
| 1*Solar Panel to Charge Controller Adaptor Kit | |
| 1*Battery to Charge Controller Tray Cables | |
| 1*Solar Double Cable Entry Gland | |
| Accessory Set for Flexible Panel Kit | Quantity*Title |
| 1*Solar Panel Mounting Z Bracket -- Set of 4(rigid solar panel) | |
| 1*Solar Y Branch Connectors MMF+FFM Pair | |
| 1*Solar Panel to Charge Controller Adaptor Kit | |
| 1*Battery to Charge Controller Tray Cables | |
| 1*Solar Double Cable Entry Gland | |
|
1*BT-2 Bluetooth Module |
|
| 1*Holder w/ Fuse | |
| 1*ANL Fuse Set w/ Fuse | |
| 1*Terminals for 3/8 in Lugs |
| 200 Watt 16BB N-Type 24V Solar Panel | |
|---|---|
|
Max Power at STC: 200W |
Open Circuit Voltage: 37.44V |
|
Short Circuit Current: 6.85A |
Optimum Operating Voltage: 31.03V |
|
Optimum Operating Current: 6.45A |
Operating Temperature: -40°F~185°F / -40℃~85℃ |
|
Maximum System Voltage: 600 VDC UL |
Maximum Series Fuse Rating: 15A |
| Dimensions: 1262x764x30mm/49.7x30.1x1.2in | Weight: 10.6kg/23.4lbs |
| 200W 12V Flexible Solar Panel | |
|
Maximum Power at STC: 200W |
Optimum Operating Voltage (Vmp): 20.1V |
| Open-Circuit Voltage (Voc): 23.9V | Short Circuit Current: 10.74A |
| Optimum Operating Current (Imp): 10.02A | Maximum System Voltage: 600V DC |
| Maximum Series Fuse Rating: 15A | Operating Temperature: -40°F to 176°F (-40ºC to +80ºC) |
| Dimensions: 1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in) | Weight: 4.9 kg / 10.8 lbs |
| DCC50S 12V 50A DC-DC ON-BOARD BATTERY CHARGER WITH MPPT | |
|---|---|
|
System Voltage: 12VDC |
Maximum Charging Current: 50A |
| Battery Types: SLD, GEL, FLD, LI,USER | Service Battery Charging Mode: MPPT |
| Charging Efficiency: Up to 97% | Max. Solar Input Voltage: 25V |
| Max. Solar Input Power: 660W @ 50A | Terminal Size: M8*1.25 - 10mm |
| Ground Type: Negative | Operating Temperature Range: -31°F - 149°F |
| Storage Temperature Range: -40°F - 176°F | Dimensions: 9.6*5.7*3.0in |
| Weight: 3.13Ibs | Communication Protocol: RS485 |
| 12V 100AH PRO LITHIUM BATTERY W/BLUETOOTH & SELF-HEATING | |
|---|---|
|
Battery Type: Lithium Iron Phosphate |
Rated Capacity: 100 Ah |
| Voltage: 12 V | Voltage Range: 10V to 14.8V |
|
Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL) |
Connection Method: Parallel(Up to 8) |
|
Protection Rate: IP67 |
Charge Voltage: 14.4V |
|
Maximum Charge Current: 100Ah |
Maximum Discharge Current: 100Ah |
| Peak Discharge Current: 245A@30s | Charge Temperature Range: -4°F to 131°F (-20°C to 55°C) |
| Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C) | Storage Temperature Range: -13°F to 149°F (-25°C to 65°C) |
| Operation Relative Humidity: 10% to 95% | Dimensions: 10.6 x 7.6 x 8.1 in (268 x 193 x 205 mm) |
| Weight: 26.9 lbs. (12.2 kg) | |
| 12V 100Ah Core Mini Lithium Battery w/ Self-heating Function | |
|---|---|
|
Battery Type: Lithium Iron Phosphate |
Rated Capacity: 100 Ah |
|
Rated Capacity (0.5C, 25°C): 12 V |
Cycle Life (0.5C, 77°F/25°C): 5000 Cycles (80% DOD) |
|
Charge Voltage: 14.6V |
Protection Rate: IP65 (Dust-tight & splash-resistant) |
|
Maximum Charge Current: 100A |
Maximum Discharge Current: 100A |
|
Maximum Continuous Discharging Current: 100 A |
Charge Temperature Range: -22°F to 131°F (-30°C to 55°C) – Ideal for safe charging |
|
Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C) |
Connection Method: Series & Parallel (up to 4S4P) |
| Terminal Bolt Size: M8 x 1.25 × 12 mm | Dimensions: 9.02 × 5.43 × 8.39 in (229 × 138 × 213 mm) |
| Weight: 21.38 lbs (9.7 kg) | |
| WARRANTY INFORMATION | |
|---|---|
|
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 5-year material and workmanship warranty |
Accessories: 1-year material and workmanship warranty |
1. What do I need to complete my off-grid solar power system ?
A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
2. What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
3. Can I add more solar panels to the Rover 60A and expand my system power output?
Yes, more solar panels can be added to this system to increase the power output. The Rover 60A has a maximum PV input current of 60A, maximum PV input voltage of 100VDC, and maximum input solar power of 520W at 12V or 1040W at 24V. You can wire more solar panels in series / in parallel to achieve larger power output, however you are limited by the maximum input voltage and current the charge controller can handle. It is safer to design the system to operate at approximately 90% of the rated voltage and current to ensure sufficient tolerance for overvoltage or overcurrent.
4. Will this solar kit power my AC unit ?
In order to determine what size solar kit is appropriate, you must first define the total load to be expected of the solar power system. Most manufacturers will publish a specification sheet of the AC unit online and will include a nameplate sticker on the AC body. Both can be used to determine the actual power rating of the AC. BTU is a common measuring unit for energy in AC and water heater products, however we are intrested in the energy rate, or simply power. Power will be listed in units of Watts, and can be used to determine the total load resulting from running the intended AC unit. Multiply the power rating recorded in watts by the total number of hours of operation intended, to obtain the total watt-hours. Divide the total watt-hours by the peak sun hours in the location of installation, and multiply by a safety factor of 1.5-2, to obtain the total number of watts your panels should produce to power the air conditioner load. The total power load can be divided by the power output of one panel to obtain the number of panels needed.
5. When do I need an inverter ?
If you intend to use this solar power kit to power home appliances (e.g., coffee maker, TV, etc.), an inverter is required to convert the output voltage from a 12 VDC system to a 120V AC outlet. Renogy offers a variety of inverter products to meet your power needs.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
 |
